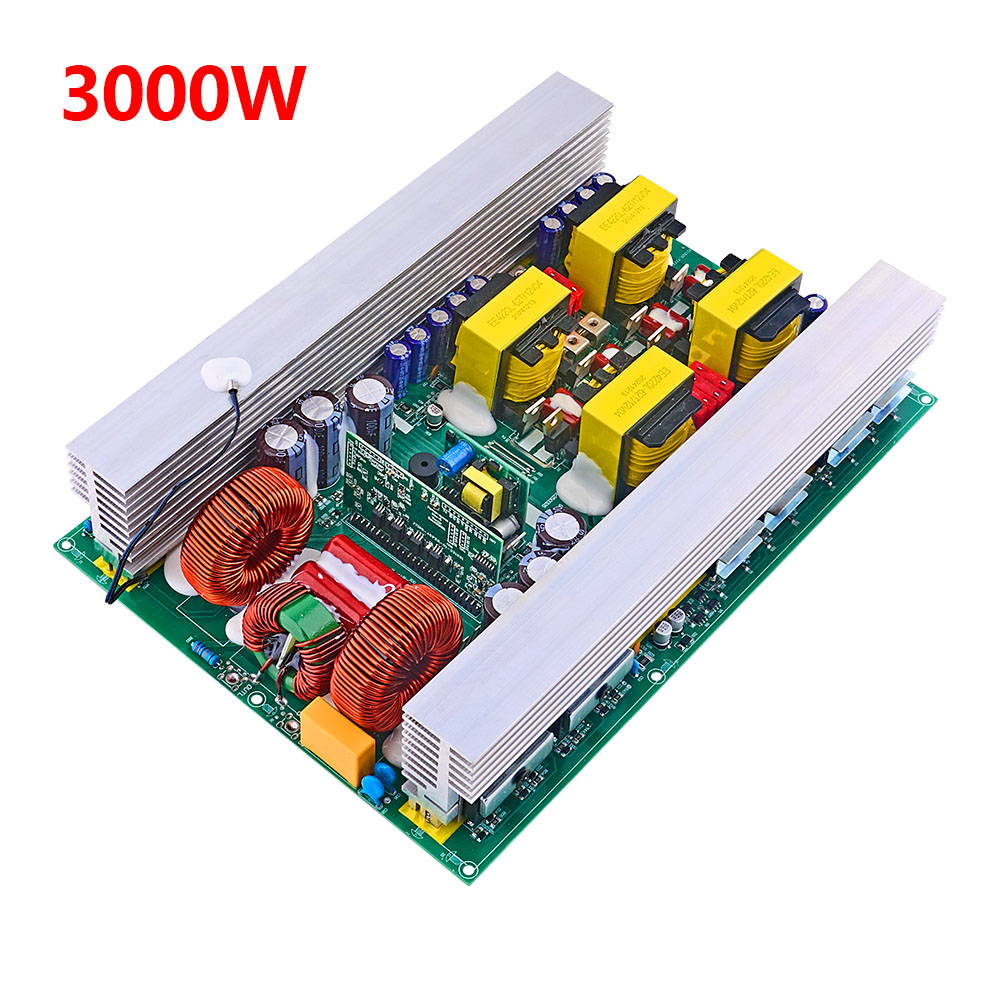

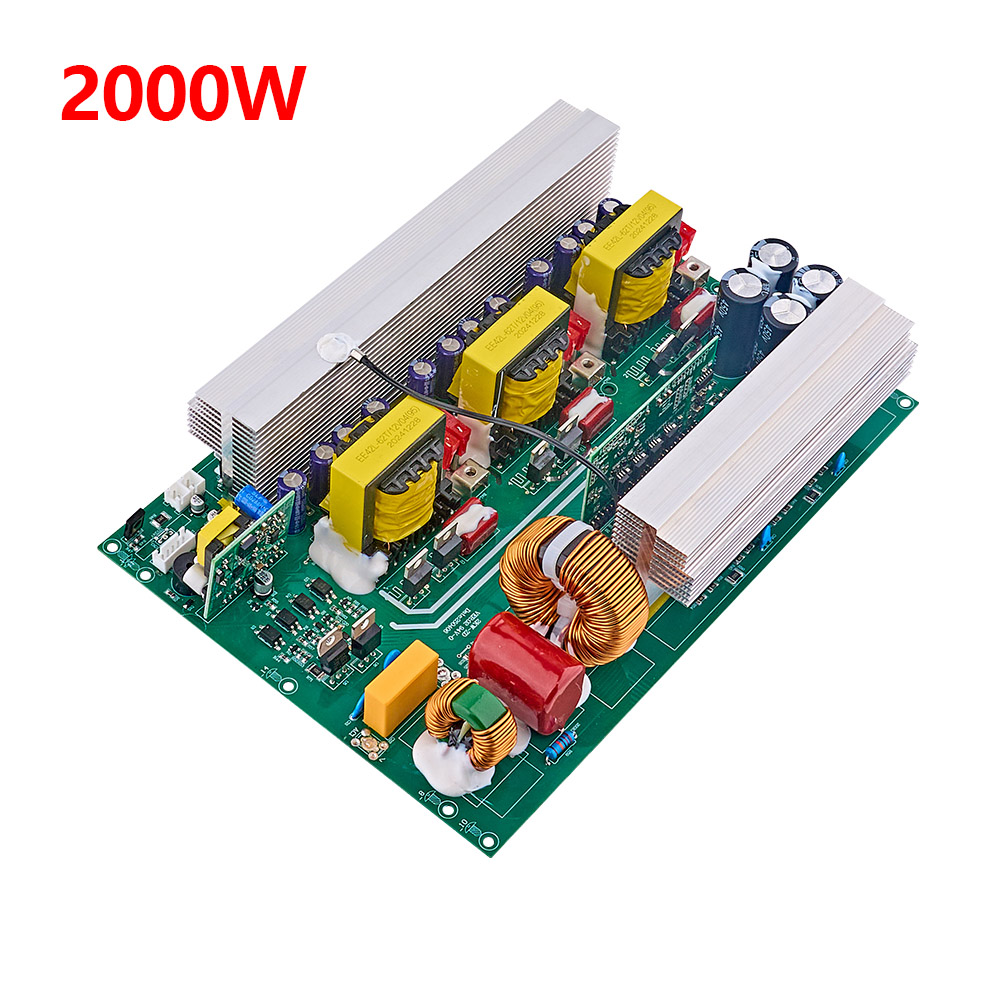

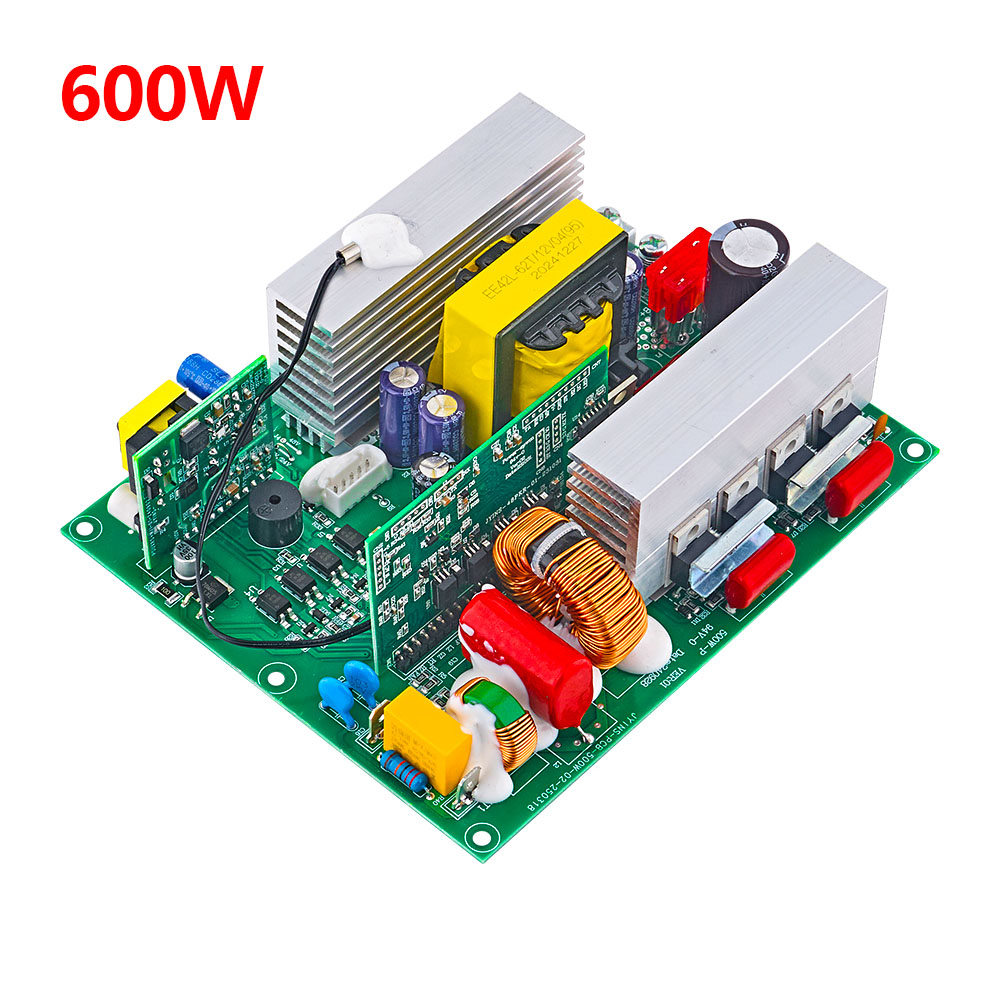

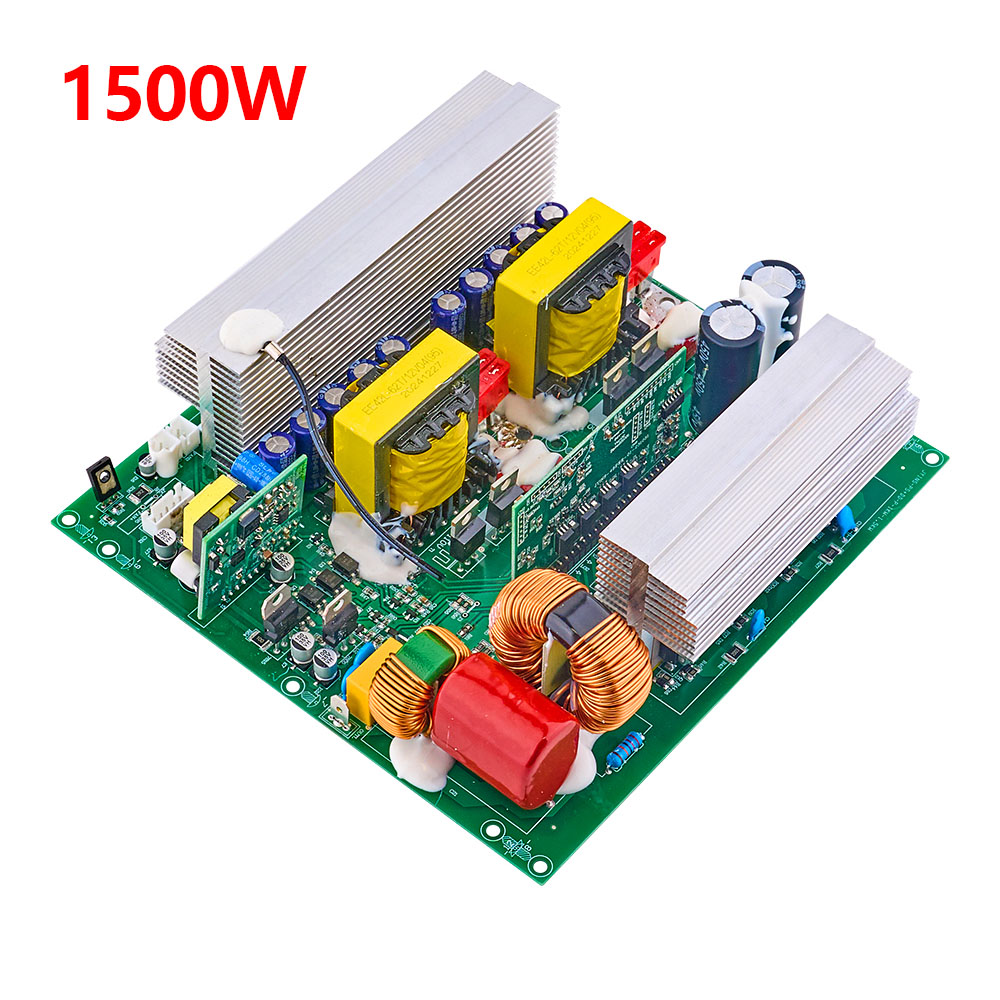

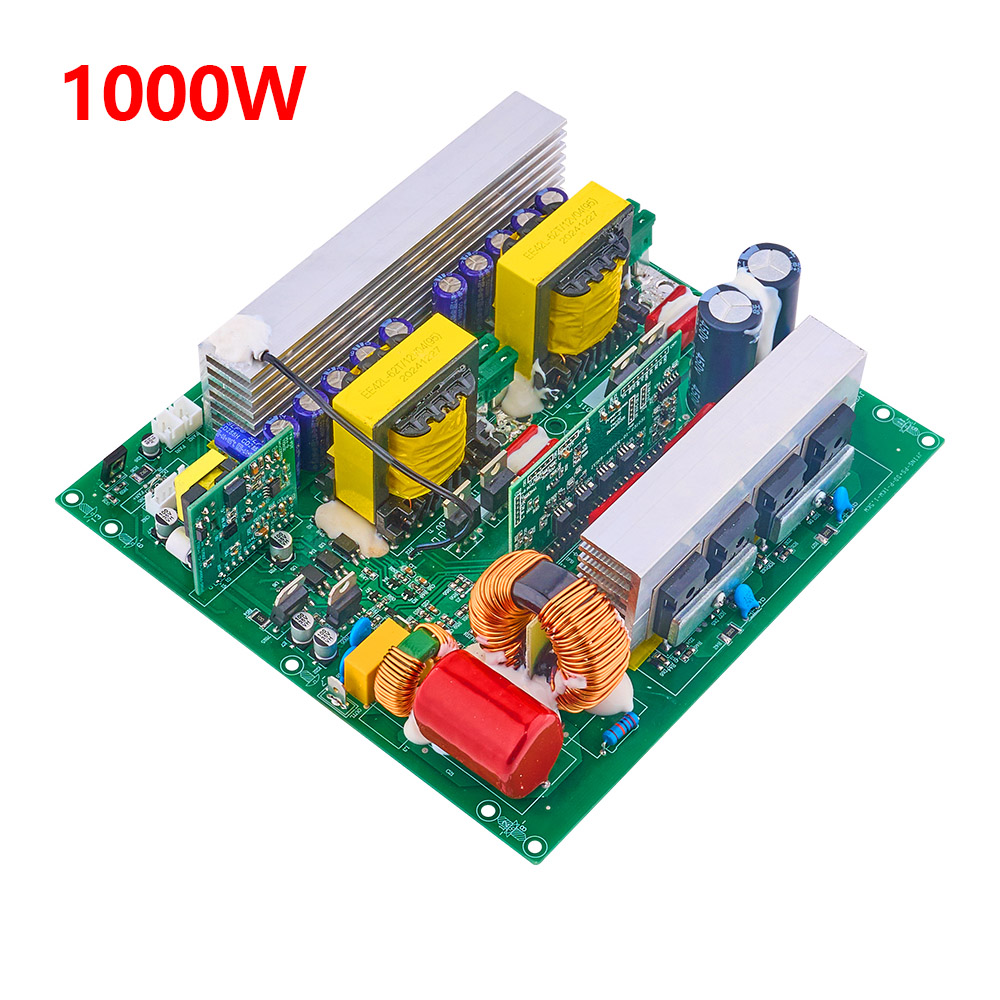

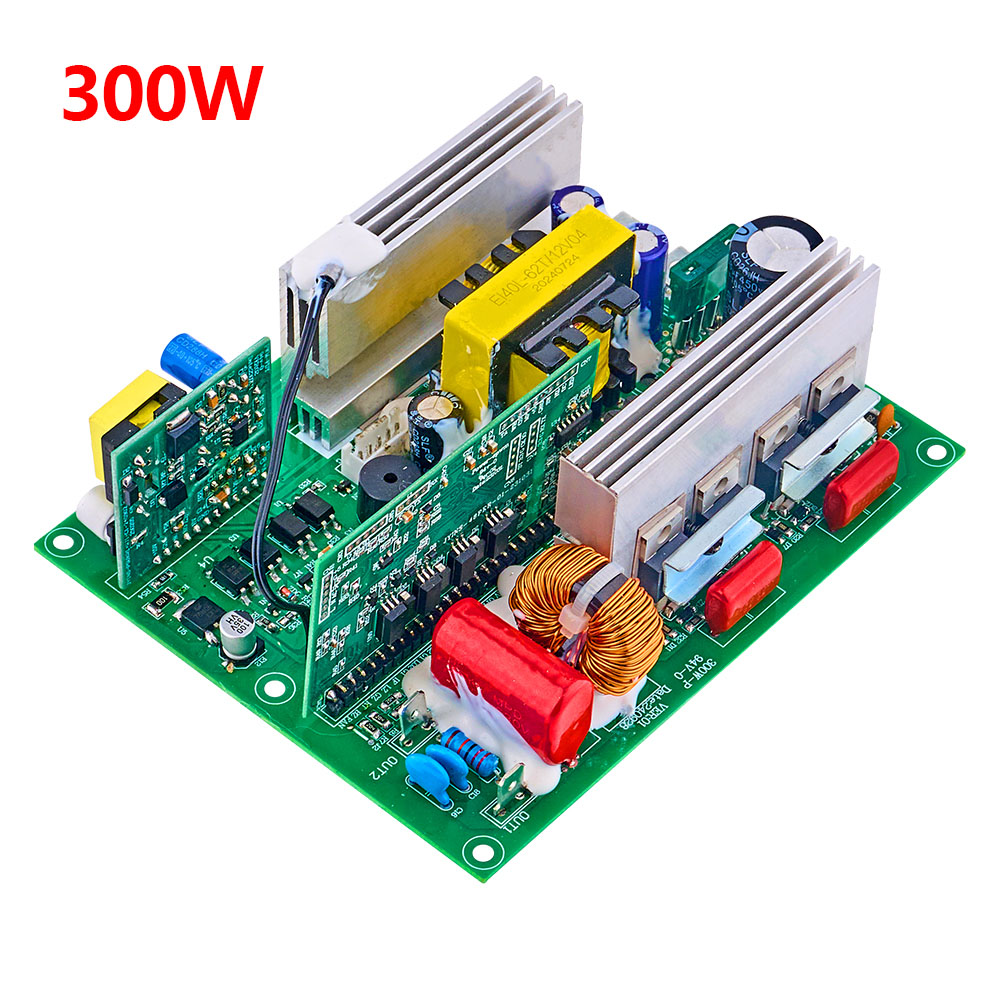

300W To 3000W Pure Sine Wave Power Inverter Pcb Board

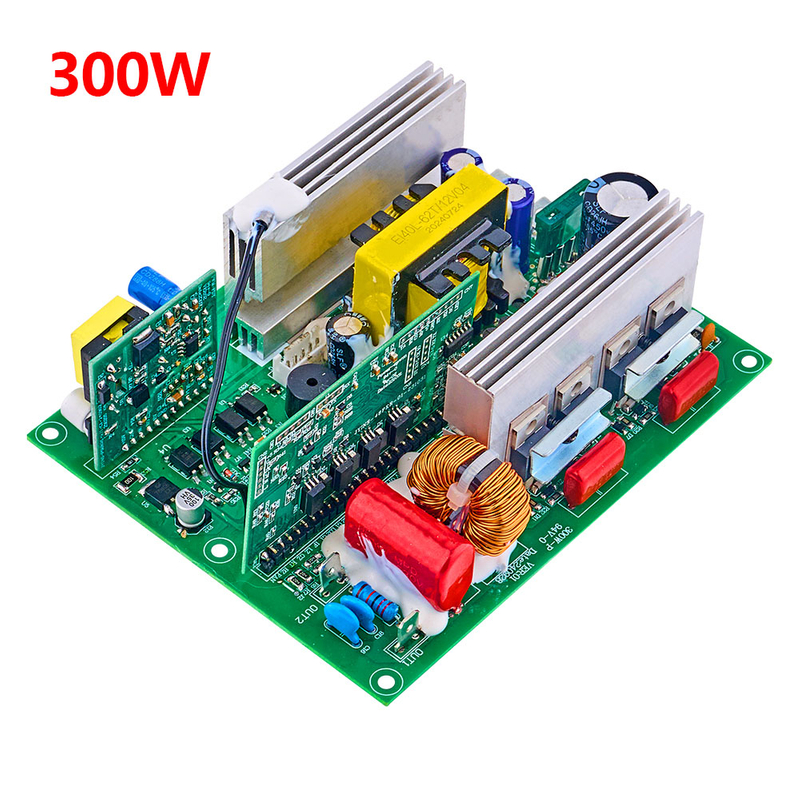

JYINS inverter PCB board offers a broad power range from 300W to 3000W. Whether it's the 300W output for powering small - scale devices, fulfilling the basic power demands of households and small commercial venues, and effortlessly driving electrical appliances such as a 1000 - watt air conditioner, a 300 - watt refrigerator, or a 500 - watt TV; or the 3000W high - power output, suitable for large - scale photovoltaic power generation systems in factories, schools, etc.

DC Voltage:	12V 24V 48V
AC Voltage:	100V/110V/120V 220V/230V/240V
Output Frequency:	50Hz 60Hz
Rate Power:	300W 600W 1000W 15000W 2000W 3000W
Availability:

Quantity:



Inquire Add to Basket

Product Description

Products

High - Efficiency Inversion

a Pioneer in Energy Conservation

The inverter PCB board boasts extremely high inversion efficiency, reaching up to 94% or even higher. This means that during the conversion process from direct current (DC) to alternating current (AC), energy loss is minimized, significantly improving energy utilization. Take solar power generation systems as an example. The high - efficiency inversion can convert more solar energy into usable AC power, saving you substantial energy costs. In the long - term use, this energy - saving advantage will bring you remarkable economic benefits while also contributing to environmental protection.

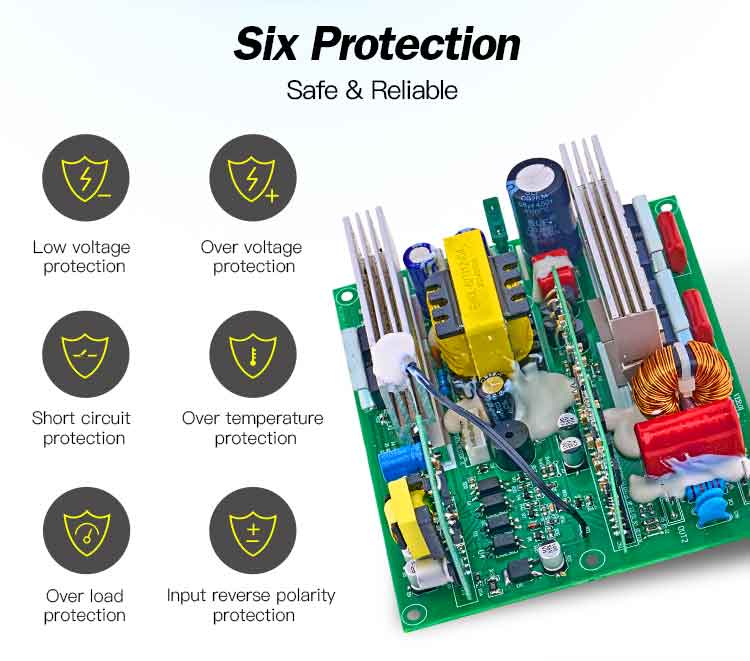

Multiple Protections for Worry - Free Operation

Our inverter PCB board is equipped with comprehensive protection functions, including under - voltage protection, over - voltage protection, over - temperature protection, over - current protection, short - circuit protection, reverse - connection protection, and soft - start protection. When dangerous situations such as abnormal voltage, excessive temperature, excessive current, or short - circuit occur, the protection mechanisms will be activated immediately to ensure the safety of the equipment and users. For instance, in the case of over - current protection, when the circuit is impacted by a large current, the VDS voltage of the front - stage power transistor is detected. Once over - current of the power transistor is determined, the current - limiting protection circuit is quickly triggered to control the duty cycle, protecting the front - stage power transistor from failure due to over - current. This multiple - protection design provides a solid and reliable safety barrier for your power use.

Applications

inverter pcb board

Home Solar Power Systems: As a key component of off - grid solar power generation systems, the inverter PCB bare board can convert the DC power generated by solar panels into AC power for daily household use, achieving self - sufficiency in home energy.

Energy Storage Power Supplies: Paired with energy storage batteries, it can store excess electrical energy and stably output power when needed, meeting the power demands in scenarios such as home emergency power use and outdoor camping.

Office Power Supply: It provides stable power for office computers, printers, lighting equipment, etc., ensuring the normal operation of the office environment.

Marine Power: Satisfies the power requirements of various equipment on ships. Whether it's lighting, communication devices, or small electrical appliances, it can supply power stably.

Vehicle - Mounted Power: Converts the DC power of vehicle batteries into AC power, supplying power to vehicle - mounted devices such as refrigerators, vacuum cleaners, and laptops, enhancing the convenience of driving trips.

Communication Power: Provides stable power support for communication base stations and other equipment, ensuring the smooth operation of communication networks.

RV Power Supply: Powers the living facilities in RVs, such as air conditioners, TVs, and kitchen appliances, allowing you to enjoy a comfortable life during your travels.

Truck Air Conditioning: Provides a comfortable driving environment for truck drivers in hot weather, ensuring driving safety.

Photovoltaic Power Plants: In large - scale photovoltaic power plants, it realizes large - scale conversion from DC to AC, efficiently transmitting solar energy to the power grid.

Outdoor Camping: Supplies power for outdoor camping lighting, cooking, and charging of electronic devices, making your outdoor life more colorful.
